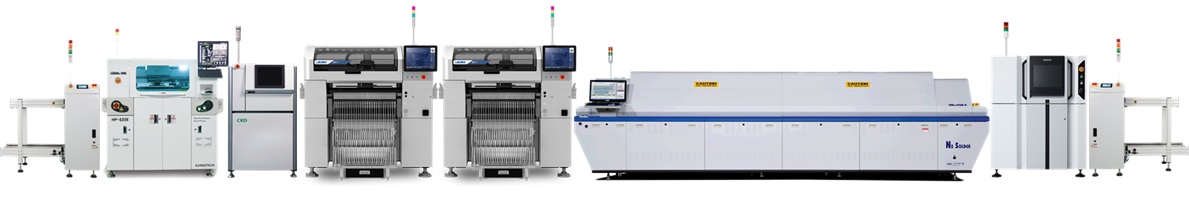

JUKI’s HANDLING SOLUTION includes a wide range of reliable products to assure the secure handling of printed circuit boards involving SMT manufacturing. We believe in durability and reliability. Our handling system is suitable for the requirements both of small and large products while providing a highly attractive performance which consist of loader, unloader, OK/NG conveyor and integrated conveyor system.
Web Page

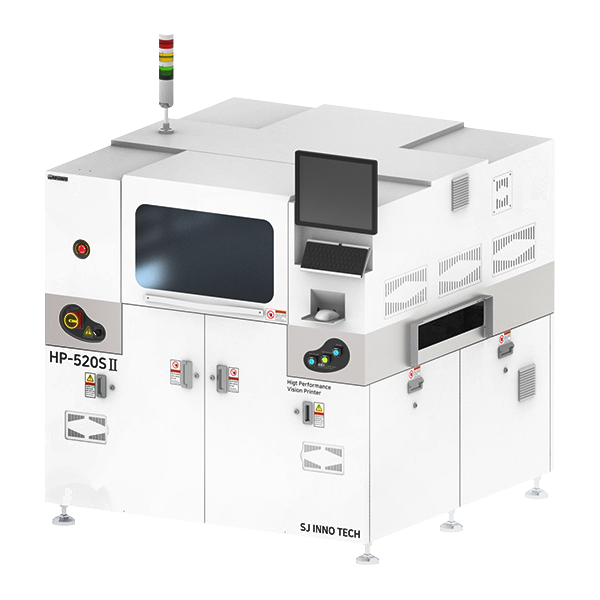

One of the best full automatic stencil printer which is up to 520mm Pcb Length, Roubust Machine Structure, Highest Quaility with Many Patented Functions, Indivucal 3 Pcb Simultanesly in Machine for Fass Transporting Time, Auto Stencil Loading as Standart Function, Low Maintenance Requirement, Life Time Highest Accuracy with CPK Calibration
Web Page| Model | HP520SII |
|---|---|
| Pcb Size | 520mm * 420mm * 6.5mm |
| Pcb Weight | 2 Kg |
| Frame Size Max | 736mm * 736mm |
| Machine Alignment Capability | ±10.0μm |
| System Alignment Capability | 2.0 Cpk@ ±25um, (±6 Sigma)* |
| Alingment | Stencil |
| Cycle Time_Load & Unload | 5 Sec |
| Cycle Time_Print | 6 Sec |
| Print Speed | 0~150 mm/sec |
| Fiducial Type | Standard & Pattern |
| Conveyor Stage | 3 - In, Work, Out |
| Top Link Clamping | Standart |
| Top Edge Clamping | Standart |
| Stencil Suction | Standart |
| Temp & Hum Sensor | Standart |
| Load Cell | 1-50 Kg/F |
| 2D Inspection | Standart |
| Auto Stencil Load | Standart |

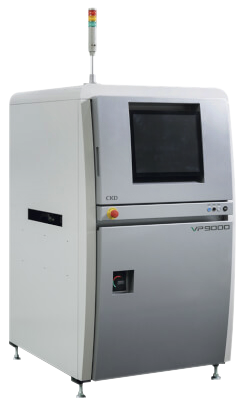

World’s newest 3D-SPI system that uses highly accurate and repeatable 3D imaging to perform complete PCB solder paste analysis. Potential PCB warpage is calculated at each inspection point and automatically compensated for prioritisation to analysis. The combination of features achieve ultra-precise volume measurements with an high accuracy.
Web Page| Machine Brand / Model | Omron |
|---|---|
| Model | Omron SPI VP9000 |
| Camera_Vertical | |
| Projector | |
| Projector Qty | 2 |
| Image Resolution | 25/12.5/8.5 um/ 50*50mm |
| Image Resolution | 20/10/7 um / 40*40mm |
| Image Resolution | 15/7.5/5 um/ 30*30mm |
| Projector Type | 2 Different Frequency, Low & High |
| Illumination Unit | Ring Light |
| Height Measurement Range | 400μm |
| Height Accuracy | 1μm |
| Height Resolution | 1μm |
| Z Axis Movement | Z Movement |
| Conveyor | Auto Width |
| Pcb Size_Single | 510mm * 4600mm |

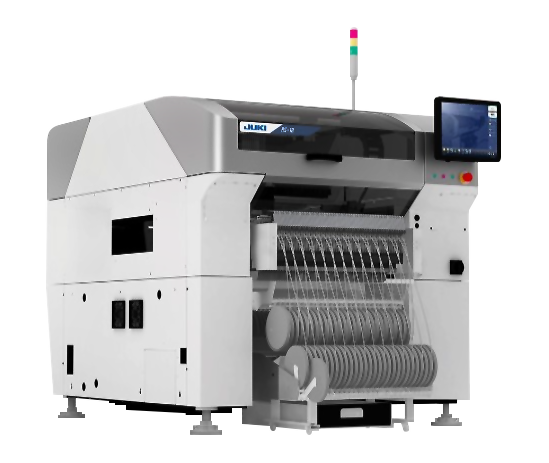

Superior productivity&reliability. Versatility with the best throughput in an advanced, all-in-one.
Web Page| Machine Brand / Model | Juki |
|---|---|
| Model | RS1R |
| Gantry Number | 1 |
| Feeder Number | 112 |
| Pcb Size_Standard | 950mm * 370mm |
| Pcb Size_Option | 1200mm * 560mm |
| Head Type | Module |
| Head Number | 8 |
| Placement Height | 1-3-6-12-20-25mm |
| Component Height | 25mm on 25mm |
| Centering Unit | Fly Centering |
| Component Size / LNC | 0.20*0.10mm - 50*50mm |
| Component Size / VCS | 50*150mm or 74*74mm |
| IPC Speed (IPC9850) | 31000 |
| Optimum Speed | 47000 |

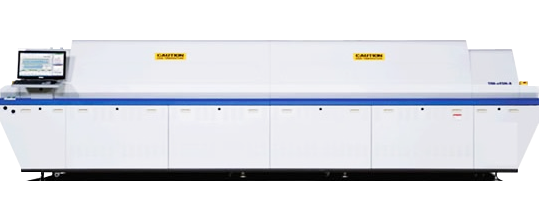

The very best of Nitrogen Reflow Oven in every aspects of soldering quality, energy saving, flux recovery. Achieved the industry’s lowest N2 consumption level with excellent thermal management thru RTPM (Real-time Thermal Profile Management). The system has multi-zone air cooling standard and PSA built-in type, dual Flux Management System available
Web Page| Machine Brand / Model | Tsm |
|---|---|
| Model | TSN II E93M |
| Heating Zone Top | 9 |
| Heating Zone Bottom | 9 |
| Heating Total Length | 2980mm |
| Width Standard | 410mm |
| Width Option | 550mm |
| Atmosphere | Air/N2 |
| Max Temp | 350 °C |
| Cooling Zone | 3 |
| Cooling Zone Length | 310 |
| Cooling Total Length | 1080 |
| Conveyor Speed | 30 - 160 Cm / Min |
| Conveyor Type | Chain/Mesh/Support |
| Power Consumption | 70kW > 10 kW |
Industries highest value AOI system that provides full 3D-AOI capability, high performance, highest first pass yield, zero escape and lowest false rejects amongst other strengths. VT-S530 series with Pre - Post Reflow configurations have been widely adopted in production lines where high value and quality control is required. VT-S530 Series uses a combination of Phase Shift and Omron’s unique color image processing technology called "color highlight ™ 3D shape reconstruction technology", providing the highest accuracy in Solder Joint Inspection called ‘SJI’.The technology available on the VT-S530 has been proven ultra-performant on the existing VT-S730-H with which it is sharing the new Image-Capture Module.
Web Page| Machine Brand | OMRON S530 |
|---|---|
| Camera_Angel | NA |
| Projector | Moire Phase Shift Measurement |
| Projector Oty | 2 |
| Projector Type | 2 Different Frequency, Low & High |
| Illumination Unit | Color Highlight |
| Height Measurement Range | 25 mm |
| Height Accuracy | 2 um |
| Conveyor | Auto Width |
| Pcb Size_Single | 510mm * 680mm |
| PCB Size_Dual | 510mm * 330mm |
| Imaging System_Vertical | 12M Pixel Camera |
| Image System_Angle | NI |
| Image Resolition | 10um / 15um |

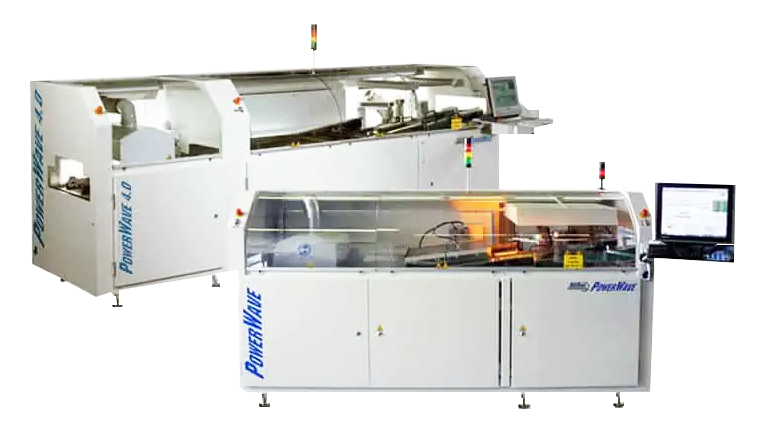

With the wave soldering system PowerWave, SEHO consequently realized a machine concept which offers a remarkable performance. The PowerWave has been designed for medium to large production series and is ideally suited for lead-free applications. Complex SMD boards are as reliably soldered as conventional assemblies - due to up-to-date solder nozzle geometries and a flexible preheat area. The modular construction of SEHO PowerWave offers the ideal concept for all production requirements and allows the machine to be integrated into existing fully automated lines.
Web Page| Machine Brand / Model | Seho |
|---|---|
| Model | Power Wave 4.0 |
| Preheating Zone | 6 |
| Preheating Total Length | 1800 mm |
| Heating Element Standard | IR |
| N2 Tunnel | NA |
| Local N2 | Option |
| Width Standard | 400 mm |
| With Adjustment | Manuel |
| Control | PC + PLC |
| Conveyor Speed | 50 - 250 Cm / Min |
| Solder Pot Volume | 400 Kg |
